VSH Shurjoint stainless steel saddle-let (1 x female thread), EPDM gasket

Scraped SKU: SS-723E 2026-06-05 04:25:21

Attributes

Group CodeSS-723E
Product Typedemontabel
Brand Seriesvsh-shurjoint-stainless-steel
Applicationsheating, cooling, compressed air, sprinkler, dry fire main
ApprovalsCRN, FM, QB (CSTBat), UL, ULc
Solutionsfire protection, utility, industry

Description

SS-723E is the designation for model SS-723 with a Grade E EPDM gasket. VSH Shurjoint grooved pipe systems consist of a wide range of groove couplings, fittings and valves for heating, compressed air and industry. VSH Shurjoint is less labor intensive, safer, cleaner and delivers consistent connection quality.
  • VSH Shurjoint can be perfectly combined with other VSH systems such as VSH XPress, VSH SudoPress and VSH PowerPress
  • the 'Aalberts integrated piping systems' range covers a fully integrated system from ¼" to 104"

    • Variations (9)

    SJTSS72312554

    size1 1/4"xFNPT1/2" 304

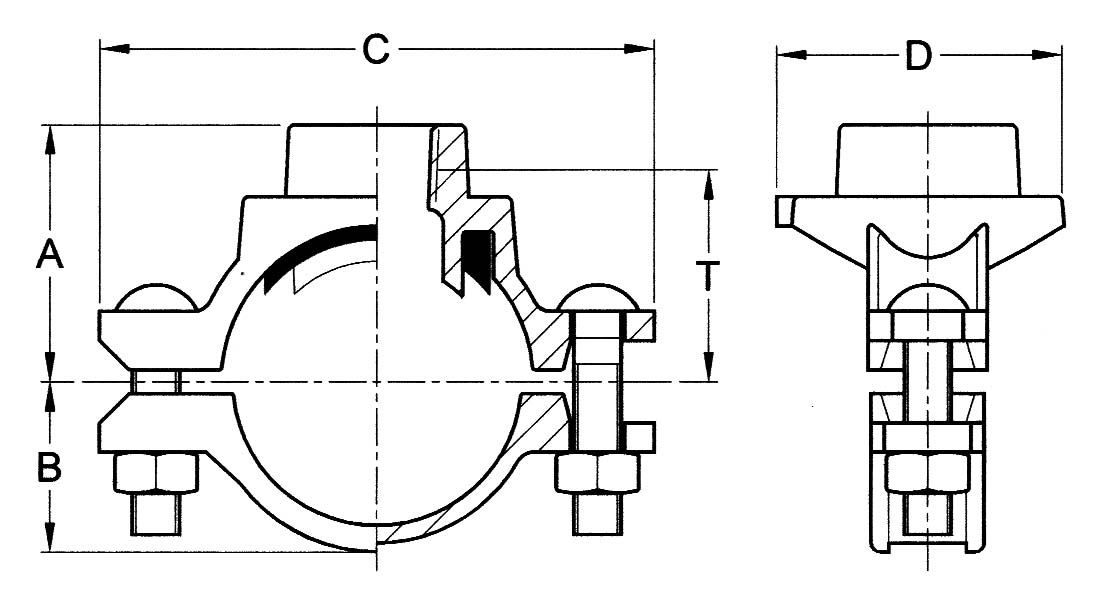

    dimensions1.93x3.43x2.64 "
    weight0.68 lb
    packaging-
    d10.84
    DN1-
    l11.61
    z11.06
    d21.67
    DN2-

    SJTSS723125754

    size1 1/4"xFNPT3/4" 304
    dimensions1.93x3.43x2.76 "
    weight0.71 lb
    packaging-
    d11.05
    DN1-
    l11.73
    z11.14
    d21.67
    DN2-

    SJTSS72312514

    size1 1/4"xFNPT1" 304
    dimensions1.93x3.43x3.03 "
    weight0.84 lb
    packaging-
    d11.32
    DN1-
    l12.01
    z11.34
    d21.67
    DN2-

    SJTSS7231554

    size1 1/2"xFNPT1/2" 304
    dimensions1.93x3.54x2.87 "
    weight0.68 lb
    packaging-
    d10.84
    DN1-
    l11.73
    z11.18
    d21.90
    DN2-

    SJTSS72315754

    size1 1/2"xFNPT3/4" 304
    dimensions1.93x3.54x2.95 "
    weight0.68 lb
    packaging-
    d11.05
    DN1-
    l11.81
    z11.22
    d21.90
    DN2-

    SJTSS7231514

    size1 1/2"xFNPT1 304
    dimensions1.93x3.54x3.23 "
    weight0.79 lb
    packaging-
    d11.32
    DN1-
    l12.09
    z11.42
    d21.90
    DN2-

    SJTSS723254

    size2"xFNPT1/2" 304
    dimensions2.01x4.29x3.43 "
    weight1.17 lb
    packaging-
    d10.84
    DN1-
    l12.01
    z11.46
    d22.37
    DN2-

    SJTSS7232754

    size2"xFNPT3/4" 304
    dimensions2.01x4.29x3.50 "
    weight1.19 lb
    packaging-
    d11.05
    DN1-
    l12.09
    z11.10
    d22.37
    DN2-

    SJTSS723214

    size2"xFNPT1" 304
    dimensions2.01x4.29x3.78 "
    weight1.41 lb
    packaging-
    d11.32
    DN1-
    l12.36
    z11.69
    d22.37
    DN2-

    Specifications

    articleVSH Shurjoint stainless steel saddle-let (1 x female thread), EPDM gasket
    article number with gtinSS-723E
    manufacturerShurjoint
    weight1.41 lb
    dimensions2.01x4.29x3.78 "
    colorsilver
    materialsstainless steel (Stainless steel 304 (1.4301))
    finishingnone
    shapeTapping saddle
    connection typeFPT - female thread conical (NPT), hole
    sealingEPDM
    max operating pressure liquid290 psi
    min. medium temperature-29 °F
    max medium temperature230 °F
    product groupfittings (demountable)
    ETIM classEC011014 Broaching saddle
    intrastat code73072910
    country of originTaiwan
    brandVSH
    seriesShurjoint Stainless Steel
    product typeSS-723E
    ETIM
    {"etim-class":"EC011014 Broaching saddle","Material":"Stainless steel","Material quality":"Stainless steel 304 (1.4301)","Material inlay":"Ethylene-propylene diene monomer rubber (EPDM)","Surface protection":"Untreated","Connection":"Internal thread conical (NPT)","Max. operating pressure at 20 °C":"20bar","Max. operating pressure at 20 °C (imperial)":"290.08psi","Colour":"Grey","VdS quality mark":"No","KIWA certified":"No","Gastec QA mark":"No","Gastec QA - AR 214 (H2)":"No"}
