Apollo 19 Series Safety Relief Valves

Apollo ASME Sec I Steam Bronze Safety Relief Valves with Brass Trim, Teflon Seat, 1-1/2" x 2-1/2" (2 x FNPT)

Scraped SKU: 19KJGAXXX 2026-06-05 04:25:49

Attributes

Group Code19KJGAXXX
Product Typesafety-relief-valve
Brand Seriesapollo-19-series-safety-relief-valves
Applicationssteam, compressed air
ApprovalsBuild America Buy America (BABA) Act, Buy American Act (BAA), CRN, Made in USA
Solutionsutility

Description

ASME Sections I & VIII capacity certified safety valve for overpressure protection of steam power boilers, pressure piping systems, pressure vessels, piping and similar equipment. Suitable for steam, air and non-hazardous gases.
  • ASME Section I & VIII Certified Capacities
  • 5 - 300 psig Set Pressures @ -60°F min. / 406°F max.
  • 1/2" - 2-1/2" Inlet Connections Available
  • Stainless Steel Wetted Trim (19L, 19S)
  • PFA and Metal Seat Styles Available
  • Made in the USA

Variations (16)

19KJGA100

size1-1/2" x 2-1/2"
dimensions-
weight19.2 lb
packagingCarton (1 pce)

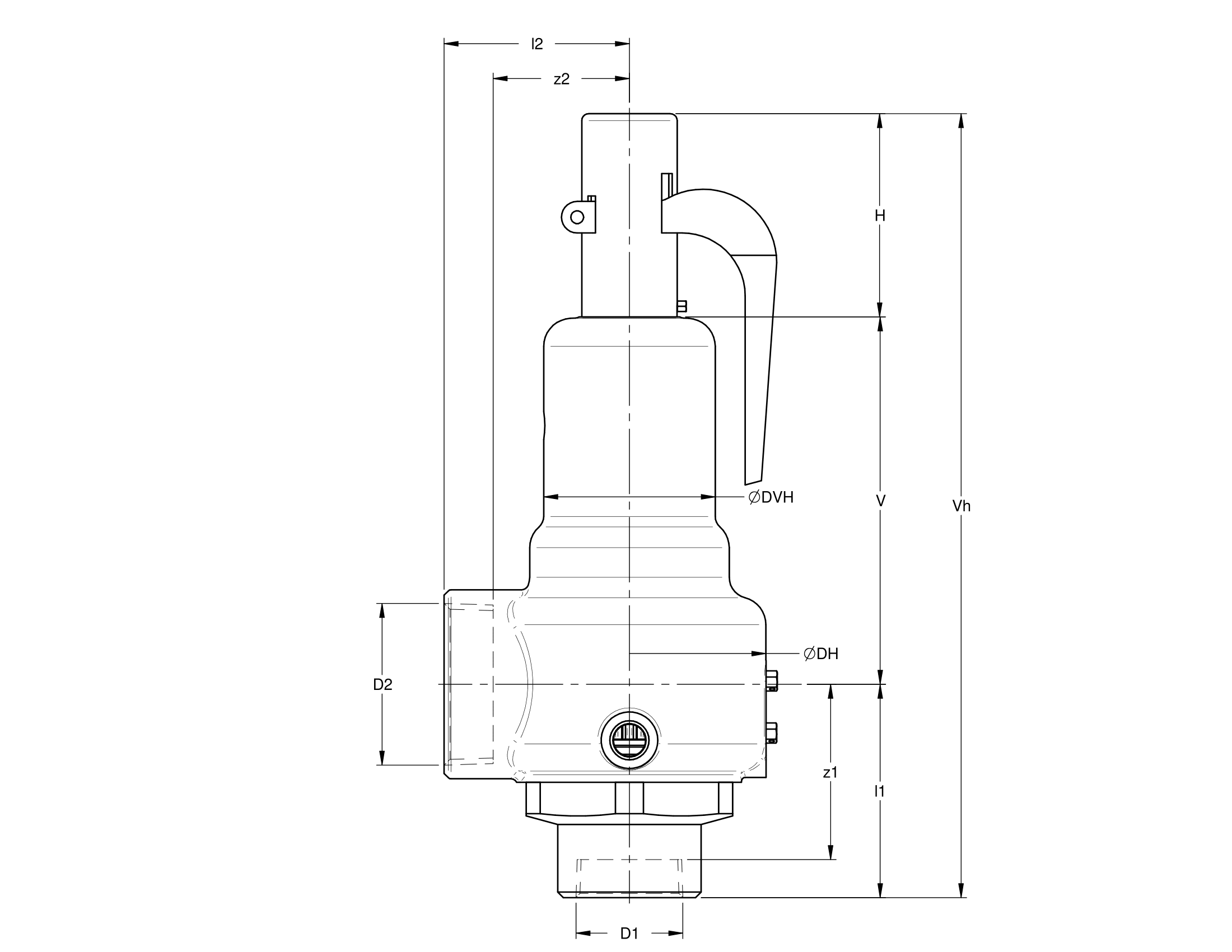

d11.90
DN1-
l13.80
z13.13
d22.88
DN2-
l23.31
z22.43
h13.63
V6.56

19KJGA115

size1-1/2" x 2-1/2"
dimensions-
weight19.2 lb
packagingCarton (1 pce)
d11.90
DN1-
l13.80
z13.13
d22.88
DN2-
l23.31
z22.43
h13.63
V6.56

19KJGA125

size1-1/2" x 2-1/2"
dimensions-
weight19.2 lb
packagingCarton (1 pce)
d11.90
DN1-
l13.80
z13.13
d22.88
DN2-
l23.31
z22.43
h13.63
V6.56

19KJGA135

size1-1/2" x 2-1/2"
dimensions-
weight19.2 lb
packagingCarton (1 pce)
d11.90
DN1-
l13.80
z13.13
d22.88
DN2-
l23.31
z22.43
h13.63
V6.56

19KJGA15

size1-1/2" x 2-1/2"
dimensions-
weight19.2 lb
packagingCarton (1 pce)
d11.90
DN1-
l13.80
z13.13
d22.88
DN2-
l23.31
z22.43
h13.63
V6.56

19KJGA150

size1-1/2" x 2-1/2"
dimensions-
weight19.2 lb
packagingCarton (1 pce)
d11.90
DN1-
l13.80
z13.13
d22.88
DN2-
l23.31
z22.43
h13.63
V6.56

19KJGA160

size1-1/2" x 2-1/2"
dimensions-
weight19.2 lb
packagingCarton (1 pce)
d11.90
DN1-
l13.80
z13.13
d22.88
DN2-
l23.31
z22.43
h13.63
V6.56

19KJGA180

size1-1/2" x 2-1/2"
dimensions-
weight19.2 lb
packagingCarton (1 pce)
d11.90
DN1-
l13.80
z13.13
d22.88
DN2-
l23.31
z22.43
h13.63
V6.56

19KJGA190

size1-1/2" x 2-1/2"
dimensions-
weight19.2 lb
packagingCarton (1 pce)
d11.90
DN1-
l13.80
z13.13
d22.88
DN2-
l23.31
z22.43
h13.63
V6.56

19KJGA195

size1-1/2" x 2-1/2"
dimensions-
weight19.2 lb
packagingCarton (1 pce)
d11.90
DN1-
l13.80
z13.13
d22.88
DN2-
l23.31
z22.43
h13.63
V6.56

19KJGA25

size1-1/2" x 2-1/2"
dimensions-
weight19.2 lb
packagingCarton (1 pce)
d11.90
DN1-
l13.80
z13.13
d22.88
DN2-
l23.31
z22.43
h13.63
V6.56

19KJGA30

size1-1/2" x 2-1/2"
dimensions-
weight19.2 lb
packagingCarton (1 pce)
d11.90
DN1-
l13.80
z13.13
d22.88
DN2-
l23.31
z22.43
h13.63
V6.56

19KJGA50

size1-1/2" x 2-1/2"
dimensions-
weight19.2 lb
packagingCarton (1 pce)
d11.90
DN1-
l13.80
z13.13
d22.88
DN2-
l23.31
z22.43
h13.63
V6.56

19KJGA60

size1-1/2" x 2-1/2"
dimensions-
weight19.2 lb
packagingCarton (1 pce)
d11.90
DN1-
l13.80
z13.13
d22.88
DN2-
l23.31
z22.43
h13.63
V6.56

19KJGA75

size1-1/2" x 2-1/2"
dimensions-
weight19.2 lb
packagingCarton (1 pce)
d11.90
DN1-
l13.80
z13.13
d22.88
DN2-
l23.31
z22.43
h13.63
V6.56

19KJGA90

size1-1/2" x 2-1/2"
dimensions-
weight19.2 lb
packagingCarton (1 pce)
d11.90
DN1-
l13.80
z13.13
d22.88
DN2-
l23.31
z22.43
h13.63
V6.56

Specifications

articleApollo ASME Sec I Steam Bronze Safety Relief Valves with Brass Trim, Teflon Seat, 1-1/2" x 2-1/2" (2 x FNPT)
article number with gtin19KJGAXXX
manufacturerAalberts integrated piping systems Americas, Inc. (Apollo)
size1-1/2" x 2-1/2"
weight19.2 lb
coloryellow, bronze
materialsbronze (ASTM B584)
finishingnone
shapePerpendicular
connection typeFPT - female thread conical (NPT)
max operating pressure liquid300 psi
product groupvalves (safety relief valves)
ETIM classEC011311 Safety valve
country of originUnited States
brandApollo
series19 Series Safety Relief Valves
product type19KJGAXXX
unsps40141606
ETIM
{"etim-class":"EC011311 Safety valve","Housing material":"Bronze","Connection 1":"Internal thread conical (NPT)","Nominal diameter connection 1":"DN 40","Outer pipe diameter connection 1":"48.26mm","Outer pipe diameter connection 1 (imperial)":"1.9\"","Connection 2":"Internal thread conical (NPT)","Nominal diameter connection 2":"DN 65","Outer pipe diameter connection 2":"73.02mm","Outer pipe diameter connection 2 (imperial)":"2.88\"","Max. operating pressure at 20 °C":"20.68bar","Max. operating pressure at 20 °C (imperial)":"300psi","Surface protection":"Untreated","Length of connection 1":"96.52mm","Length of connection 1 (imperial)":"3.8\"","Working length connection 1":"79.5mm","Working length connection 1 (imperial)":"3.13\"","Length of connection 2":"84.07mm","Length of connection 2 (imperial)":"3.31\"","Working length connection 2":"61.72mm","Working length connection 2 (imperial)":"2.43\"","Height":"","Height (imperial)":"","Suitable for heating":"No","Suitable for cooling":"No","Suitable for solar heating":"No","Suitable for hot tap water":"No"}

PDF Documents

[Datasheet] 19 Submittal Sheet Open PDF
