Apollo 10 Series Safety Relief Valves

Apollo ASME Hot Water Bronze Safety Relief Valves (2 x FNPT)

Scraped SKU: 10102XX 2026-06-05 04:26:08

Attributes

Group Code10102XX
Product Typesafety-relief-valve
Brand Seriesapollo-10-series-safety-relief-valves
Applicationsheating
ApprovalsBuild America Buy America (BABA) Act, Buy American Act (BAA), CRN, Made in USA
Solutionsutility

Description

ASME Section IV Capacity Certified Bronze Safety Relief Valves protect ASME Section IV hot water heating boilers and hydronic heating systems. High capacity design features corrosion resistant construction. Brass, satin or polished chrome finishes available. Proudly made in the USA.
  • ASME Section IV Certified Capacity (20-60psi only)
  • 15-60 psig (1.4 - 4.1 bar) Set Pressure at 250°F (121°C) max
  • Registered in all Canadian Provinces and Territories, CRN #0G8547.5C
  • Stainless Steel Springs Standard
  • Female NPT inlet
  • EPDM or Silicone Seat Options

Variations (11)

1010202

size3/4" x 1"
dimensions2.50x2.00x3.50 "
weight1.05 lb
packagingCarton (1 pce)

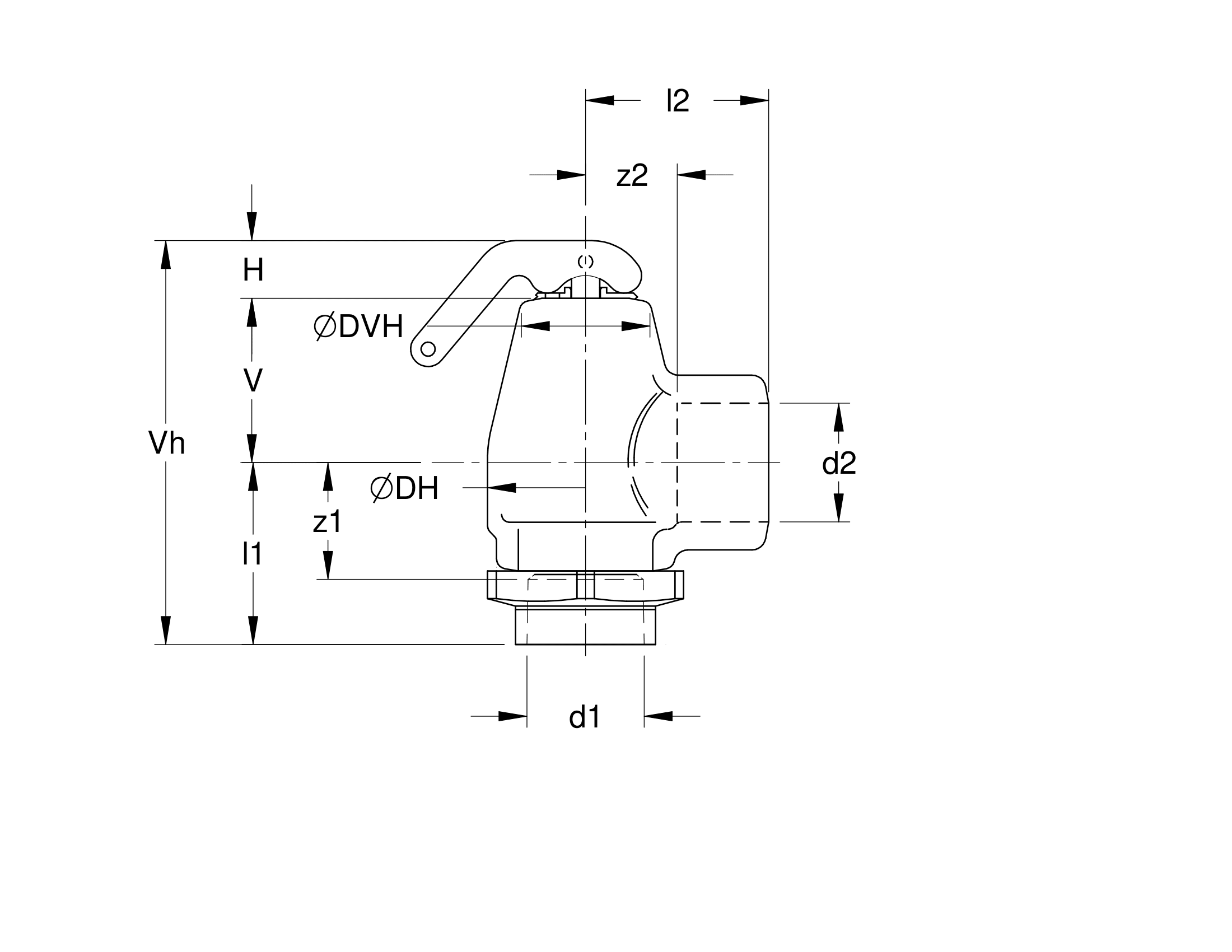

d11.05
DN1-
l11.47
z10.88
d21.32
DN2-
l21.53
z20.84
h10.53
V1.38

1010203

size3/4" x 1"
dimensions2.50x2.00x3.50 "
weight1.05 lb
packagingCarton (1 pce)
d11.05
DN1-
l11.47
z10.88
d21.32
DN2-
l21.53
z20.84
h10.53
V1.38

1010204

size3/4" x 1"
dimensions2.50x2.00x3.50 "
weight1.05 lb
packagingCarton (1 pce)
d11.05
DN1-
l11.47
z10.88
d21.32
DN2-
l21.53
z20.84
h10.53
V1.38

10102C8

size3/4" x 1"
dimensions2.50x2.00x3.50 "
weight1.05 lb
packagingCarton (1 pce)
d11.05
DN1-
l11.47
z10.88
d21.32
DN2-
l21.53
z20.84
h10.53
V1.38

1010205

size3/4" x 1"
dimensions2.50x2.00x3.50 "
weight1.05 lb
packagingCarton (1 pce)
d11.05
DN1-
l11.47
z10.88
d21.32
DN2-
l21.53
z20.84
h10.53
V1.38

1010206

size3/4" x 1"
dimensions2.50x2.00x3.50 "
weight1.05 lb
packagingCarton (1 pce)
d11.05
DN1-
l11.47
z10.88
d21.32
DN2-
l21.53
z20.84
h10.53
V1.38

1010207

size3/4" x 1"
dimensions2.50x2.00x3.50 "
weight1.05 lb
packagingCarton (1 pce)
d11.05
DN1-
l11.47
z10.88
d21.32
DN2-
l21.53
z20.84
h10.53
V1.38

1010209

size3/4" x 1"
dimensions2.50x2.00x3.50 "
weight1.05 lb
packagingCarton (1 pce)
d11.05
DN1-
l11.47
z10.88
d21.32
DN2-
l21.53
z20.84
h10.53
V1.38

1010210

size3/4" x 1"
dimensions2.50x2.00x3.50 "
weight1.05 lb
packagingCarton (1 pce)
d11.05
DN1-
l11.47
z10.88
d21.32
DN2-
l21.53
z20.84
h10.53
V1.38

1010211

size3/4" x 1"
dimensions2.50x2.00x3.50 "
weight1.05 lb
packagingCarton (1 pce)
d11.05
DN1-
l11.47
z10.88
d21.32
DN2-
l21.53
z20.84
h10.53
V1.38

1010212

size3/4" x 1"
dimensions2.50x2.00x3.50 "
weight1.05 lb
packagingCarton (1 pce)
d11.05
DN1-
l11.47
z10.88
d21.32
DN2-
l21.53
z20.84
h10.53
V1.38

Specifications

articleApollo ASME Hot Water Bronze Safety Relief Valves (2 x FNPT)
article number with gtin10102XX
manufacturerAalberts integrated piping systems Americas, Inc. (Apollo)
size3/4" x 1"
weight1.05 lb
dimensions2.50x2.00x3.50 "
colorbronze
materialsbronze (ASTM B584-C84400)
finishingnone
shapestraight
connection typeFPT - female thread conical (NPT)
sealingEPDM, Silicone
max operating pressure liquid60 psi
min. medium temperature32 °F
max medium temperature250 °F
peak medium temperature250 °F
product groupvalves (safety relief valves)
ETIM classEC011311 Safety valve
country of originUnited States
brandApollo
series10 Series Safety Relief Valves
product type10102XX
unsps40141606
ETIM
{"etim-class":"EC011311 Safety valve","Housing material":"Bronze","Connection 1":"Internal thread conical (NPT)","Nominal diameter connection 1":"3/4 inch (20)","Outer pipe diameter connection 1":"26.67mm","Outer pipe diameter connection 1 (imperial)":"1.05\"","Connection 2":"Internal thread conical (NPT)","Nominal diameter connection 2":"1 inch (25)","Outer pipe diameter connection 2":"33.4mm","Outer pipe diameter connection 2 (imperial)":"1.32\"","Max. operating pressure at 20 °C":"4.13bar","Max. operating pressure at 20 °C (imperial)":"60psi","Medium temperature (continuous)":"121°C","Medium temperature (continuous) (imperial)":"32°F - 249.8°F","Surface protection":"Untreated","Length of connection 1":"38.1mm","Length of connection 1 (imperial)":"1.47\"","Working length connection 1":"22.35mm","Working length connection 1 (imperial)":"0.88\"","Length of connection 2":"38.86mm","Length of connection 2 (imperial)":"1.53\"","Working length connection 2":"21.34mm","Working length connection 2 (imperial)":"0.84\"","Height":"88.9mm","Height (imperial)":"3.5\"","Suitable for heating":"Yes","Suitable for cooling":"No","Suitable for solar heating":"No","Suitable for hot tap water":"No"}

PDF Documents

[Datasheet] 10-100 Submittal Sheet Open PDF
