Attributes
| Group Code | 10512BXXB |
|---|---|
| Product Type | safety-relief-valve |
| Brand Series | apollo-10-series-safety-relief-valves |
| Applications | heating, steam |
| Approvals | Build America Buy America (BABA) Act, Buy American Act (BAA), CRN, Made in USA, PED 2014/68/EU – Module H |
| Solutions | utility |
Description
Apollo Valves ASME Section VIII capacity certified safety relief valves are designed for overpressure protection of steam systems, cookers, kettles, sterilizers and similar equipment.
- ASME Section VIII Certified Capacity
- 15-60 psig (1.0 - 4.1 bar) Set Pressures @ 300°F (150°C) max
- Compact Design
- Chrome Finish Options
- Made in USA
Variations (1)
10512B30B
| size | 1/2" |
|---|---|
| dimensions | - |
| weight | 0.58 lb |
| packaging | Carton (1 pce) |

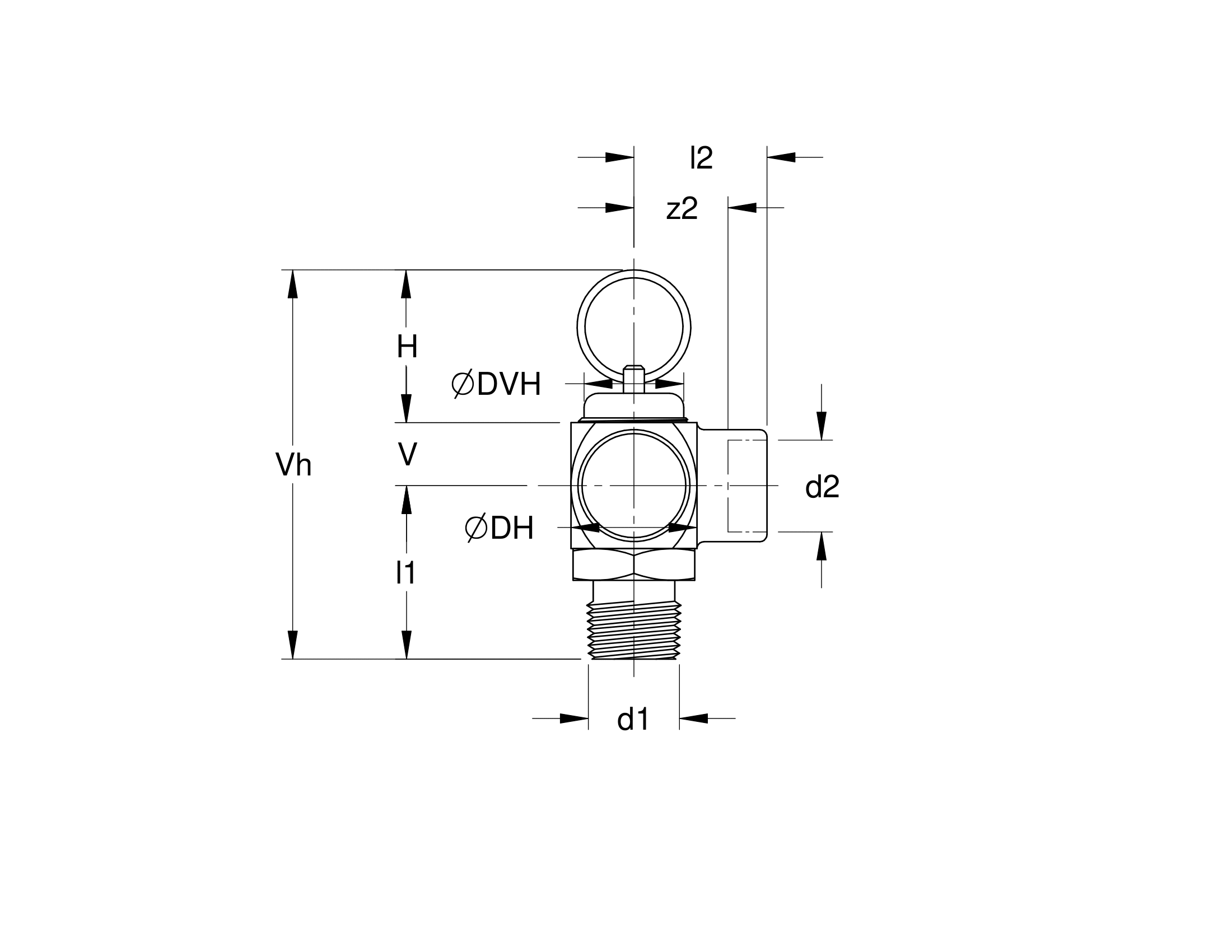

| d1 | 0.84 |
| DN1 | - |
| l1 | 1.55 |
| d2 | 0.84 |
| DN2 | - |
| l2 | 1.19 |
Specifications
| article | Apollo ASME Sec VIII Steam Compact Brass Safety Relief Valves with Plain Brass Finish (2 x BSPP) |
|---|---|
| article number with gtin | 10512BXXB (00191988008246) |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| size | 1/2" |
| weight | 0.58 lb |
| color | brass |
| materials | brass (ASTM B16) |
| finishing | none |
| shape | straight |
| connection type | G - female thread gas cylindrical (BSPP) |
| sealing | Silicone |
| max operating pressure liquid | 60 psi |
| min. medium temperature | 32 °F |
| max medium temperature | 302 °F |
| peak medium temperature | 302 °F |
| product group | valves (safety relief valves) |
| ETIM class | EC011311 Safety valve |
| country of origin | United States |
| brand | Apollo |
| series | 10 Series Safety Relief Valves |
| product type | 10512BXXB |
| unsps | 40141606 |
| ETIM | {"etim-class":"EC011311 Safety valve","Housing material":"Brass","Connection 1":"Internal thread cylindrical BSPP-G (ISO 228-1)","Nominal diameter connection 1":"1/2 inch (15)","Outer pipe diameter connection 1":"21.34mm","Outer pipe diameter connection 1 (imperial)":"0.84\"","Connection 2":"Internal thread cylindrical BSPP-G (ISO 228-1)","Nominal diameter connection 2":"1/2 inch (15)","Outer pipe diameter connection 2":"21.34mm","Outer pipe diameter connection 2 (imperial)":"0.84\"","Max. operating pressure at 20 °C":"4.14bar","Max. operating pressure at 20 °C (imperial)":"60psi","Medium temperature (continuous)":"150°C","Medium temperature (continuous) (imperial)":"32°F - 302°F","Surface protection":"Untreated","Length of connection 1":"39.37mm","Length of connection 1 (imperial)":"1.55\"","Length of connection 2":"30.23mm","Length of connection 2 (imperial)":"1.19\"","Height":"","Height (imperial)":"","Suitable for heating":"Yes","Suitable for cooling":"No","Suitable for solar heating":"No","Suitable for hot tap water":"No"} |
