Attributes
| Group Code | 29X0XAS |
|---|---|
| Product Type | safety-relief-valve |
| Brand Series | apollo-29-series-safety-relief-valves |
| Applications | steam |
| Approvals | Build America Buy America (BABA) Act, Buy American Act (BAA), Made in USA |
| Solutions | utility |
Description
ASME Sections I & VIII capacity certified safety valve for overpressure protection of steam power boilers, steam & air system, pressure vessels, piping and similar equipment. Compact and economic design ideal for OEM applications.
- ASME Section I & VIII Certified Capacities
- 30-200 psig Set Pressures @ 406°F max
- 3/8" - 1-1/4" Inlet Connections Available
- PFA Teflon Soft Seat
- 100% Factory Tested
- Made in the USA
Variations (2)
29202A50SQ
| size | 1/2" x 1" |
|---|---|
| dimensions | - |
| weight | 1.6 lb |
| packaging | - |

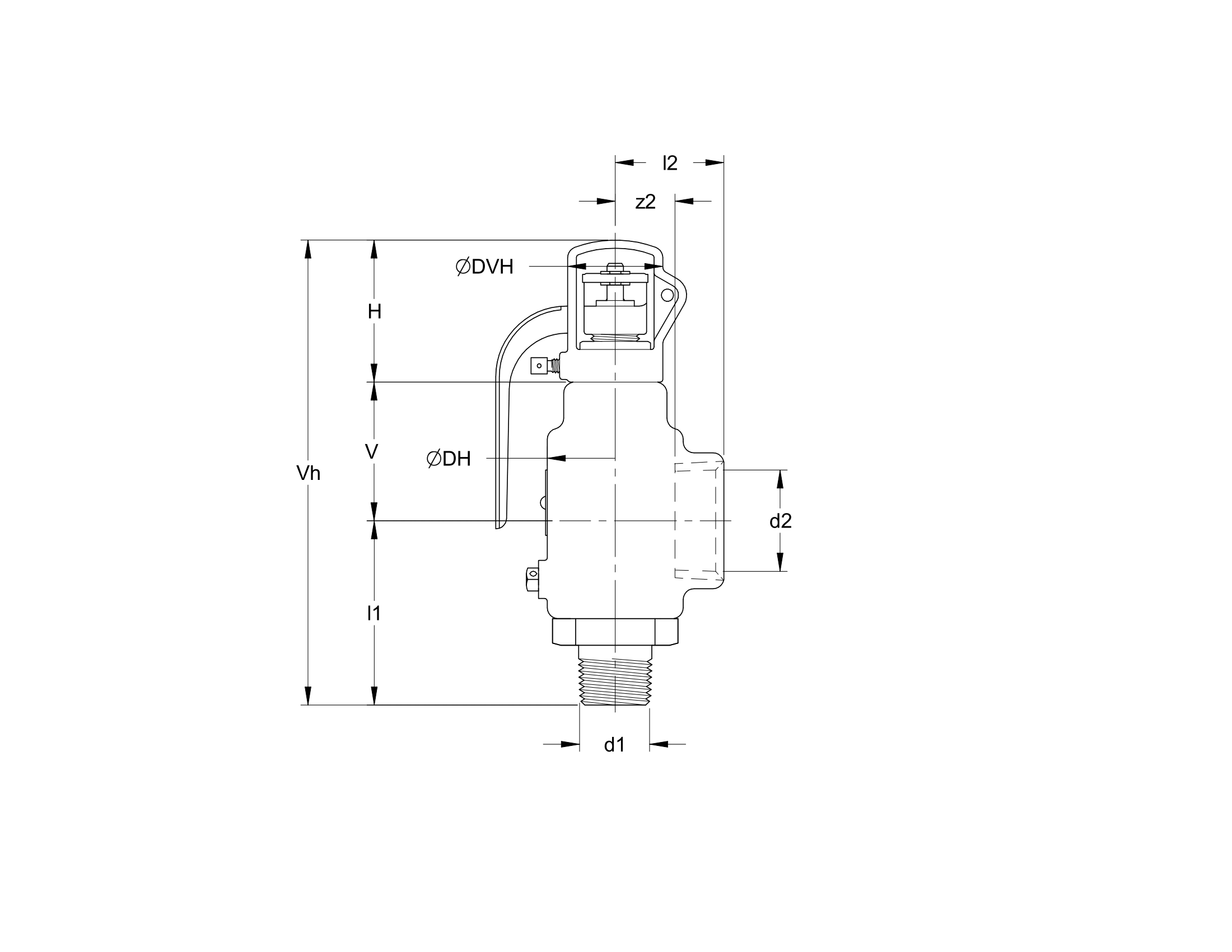

| d1 | 0.84 |
| DN1 | - |
| l1 | 2.12 |
| d2 | 1.32 |
| DN2 | - |
| l2 | 1.25 |
| z2 | 0.71 |
| h1 | 1.66 |
| V | 1.61 |
29202A100SQ
| size | 1/2" x 1" |
|---|---|
| dimensions | - |
| weight | 1.6 lb |
| packaging | - |
| d1 | 0.84 |
| DN1 | - |
| l1 | 2.12 |
| d2 | 1.32 |
| DN2 | - |
| l2 | 1.25 |
| z2 | 0.71 |
| h1 | 1.66 |
| V | 1.61 |
Specifications
| article | Apollo Bronze ASME Sec I Steam Safety Relief Valve with Stainless Steel Trim, Teflon Seat (MNPT x FNPT) |
|---|---|
| article number with gtin | 29X0XAS |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| size | 1/2" x 1" |
| weight | 1.6 lb |
| color | bronze |
| materials | bronze (ASTM B584-C84400) |
| finishing | none |
| shape | Perpendicular |
| connection type | MPT - male thread conical (NPT), FPT - female thread conical (NPT) |
| min. medium temperature | 32 °F |
| max medium temperature | 406 °F |
| peak medium temperature | 406 °F |
| product group | valves (safety relief valves) |
| ETIM class | EC011311 Safety valve |
| brand | Apollo |
| series | 29 Series Safety Relief Valves |
| product type | 29X0XAS |
| ETIM | {"etim-class":"EC011311 Safety valve","Housing material":"Bronze","Connection 1":"External thread conical (NPT)","Nominal diameter connection 1":"1/2 inch (15)","Outer pipe diameter connection 1":"21.34mm","Outer pipe diameter connection 1 (imperial)":"0.84\"","Connection 2":"Internal thread conical (NPT)","Nominal diameter connection 2":"1 inch (25)","Outer pipe diameter connection 2":"33.4mm","Outer pipe diameter connection 2 (imperial)":"1.32\"","Surface protection":"Untreated","Length of connection 1":"53.85mm","Length of connection 1 (imperial)":"2.12\"","Length of connection 2":"31.75mm","Length of connection 2 (imperial)":"1.25\"","Working length connection 2":"17.91mm","Working length connection 2 (imperial)":"0.71\"","Height":"","Height (imperial)":"","Suitable for heating":"No","Suitable for cooling":"No","Suitable for solar heating":"No","Suitable for hot tap water":"No"} |
