Attributes
| Group Code | 1420X |
|---|---|
| Product Type | safety-relief-valve |
| Brand Series | apollo-14-series-safety-relief-valves |
| Applications | steam |
| Approvals | Build America Buy America (BABA) Act, Buy American Act (BAA), CRN, Made in USA |
| Solutions | utility |
Description
The Apollo® 14 Series is a 100% American Made Bronze Safety Relief Valve for protection of steam boilers, low pressure, high volume blowers, compressors and vacuum systems.
- ASME Section IV Certified Steam Capacity
- 5-15 psig Set Pressures @ 250F max
- Corrosion Resistant Construction
- Optional Non-Code Air/Vacuum Service
Variations (1)
1420508BH
| size | 2" |
|---|---|
| dimensions | - |
| weight | 8.4 lb |
| packaging | - |

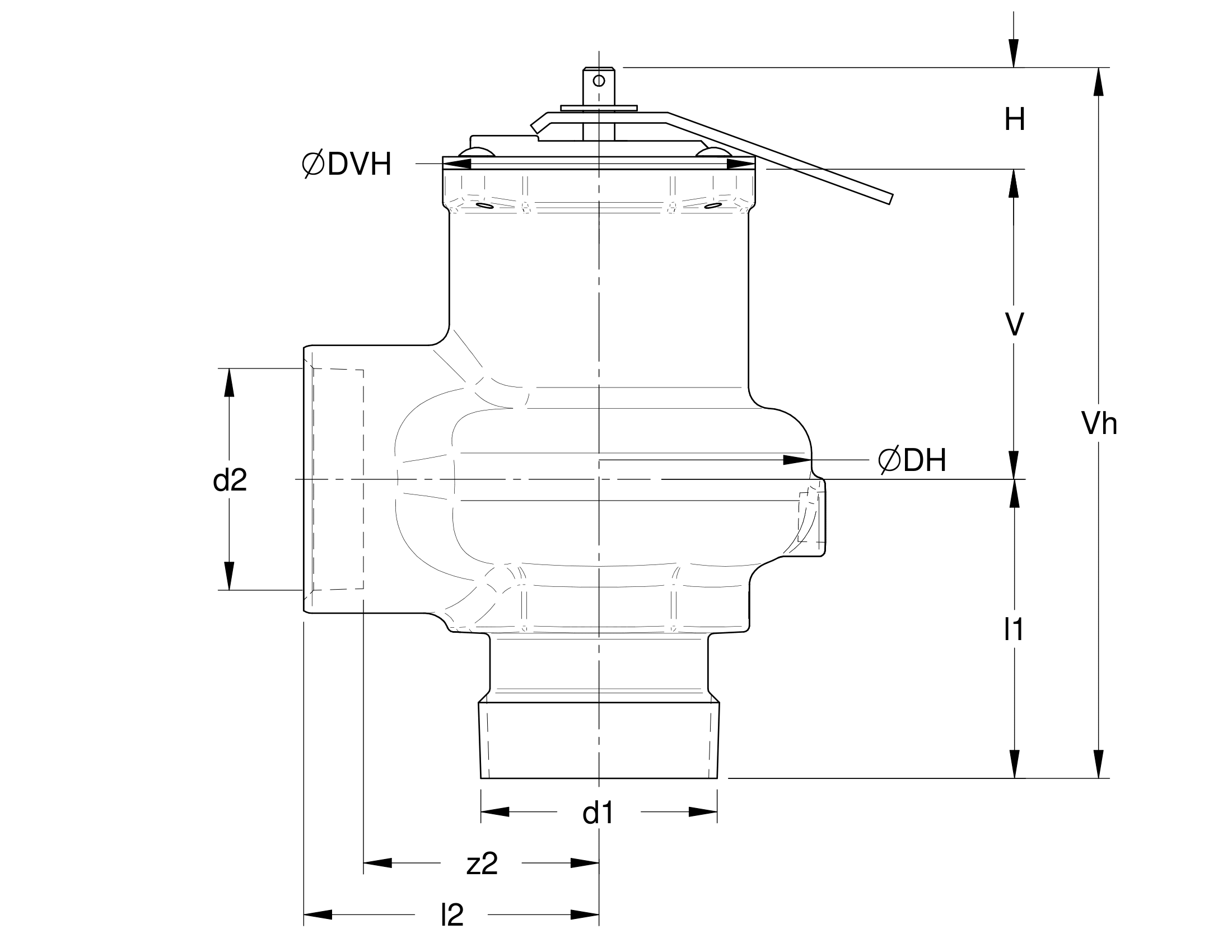

| d1 | 2.38 |
| DN1 | - |
| l1 | 2.88 |
| d2 | 2.38 |
| DN2 | - |
| l2 | 3.13 |
| z2 | 2.66 |
| h1 | 1.29 |
| V | 3.00 |
Specifications
| article | Apollo Bronze Low Press Steam Safety Relief Valve (MNPT x FNPT) |
|---|---|
| article number with gtin | 1420X (00670750967054) |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| size | 2" |
| weight | 8.4 lb |
| color | bronze |
| materials | bronze (ASTM B584-C84400) |
| finishing | none |
| shape | straight |
| connection type | MPT - male thread conical (NPT), FPT - female thread conical (NPT) |
| sealing | Silicone |
| min. medium temperature | 32 °F |
| max medium temperature | 250 °F |
| peak medium temperature | 250 °F |
| product group | valves (safety relief valves) |
| ETIM class | EC011311 Safety valve |
| brand | Apollo |
| series | 14 Series Safety Relief Valves |
| product type | 1420X |
| unsps | 40141604 |
| ETIM | {"etim-class":"EC011311 Safety valve","Housing material":"Bronze","Connection 1":"External thread conical (NPT)","Nominal diameter connection 1":"2 inch (50)","Outer pipe diameter connection 1":"60.33mm","Outer pipe diameter connection 1 (imperial)":"2.38\"","Connection 2":"Internal thread conical (NPT)","Nominal diameter connection 2":"2 inch (50)","Outer pipe diameter connection 2":"60.33mm","Outer pipe diameter connection 2 (imperial)":"2.38\"","Surface protection":"Untreated","Length of connection 1":"73.15mm","Length of connection 1 (imperial)":"2.88\"","Length of connection 2":"79.5mm","Length of connection 2 (imperial)":"3.13\"","Working length connection 2":"67.56mm","Working length connection 2 (imperial)":"2.66\"","Height":"","Height (imperial)":"","Suitable for heating":"No","Suitable for cooling":"No","Suitable for solar heating":"No","Suitable for hot tap water":"No"} |
