Apollo 14 Series Safety Relief Valves

Apollo Bronze Vacuum Safety Relief Valve (MNPT x FNPT)

Scraped SKU: 1460X 2026-06-05 04:26:20

Attributes

Group Code	1460X
Product Type	safety-relief-valve
Brand Series	apollo-14-series-safety-relief-valves
Applications	vacuum
Approvals	Build America Buy America (BABA) Act, Buy American Act (BAA), Made in USA
Solutions	utility, industry

Description

Apollo Valves 14-600 Series high flow vacuum relief valves feature one piece cast bronze bodies. Teflon coated discs and elastomer soft seating provide accurate and dependable operation.

Relief Settings 8" to 30" Hg @ 400˚F max
Weather Resistant Construction
Elastomer Soft Seat is Vibration Resistant
Stainless Steel Spring
One Piece Corrosion Resistant Bronze Body Design
High Capacity "Top-Guided" Design
TFE/Chrome Plated Internals

Variations (57)

14605V08

size	2"
dimensions	-
weight	8.4 lb
packaging	Carton (1 pce)

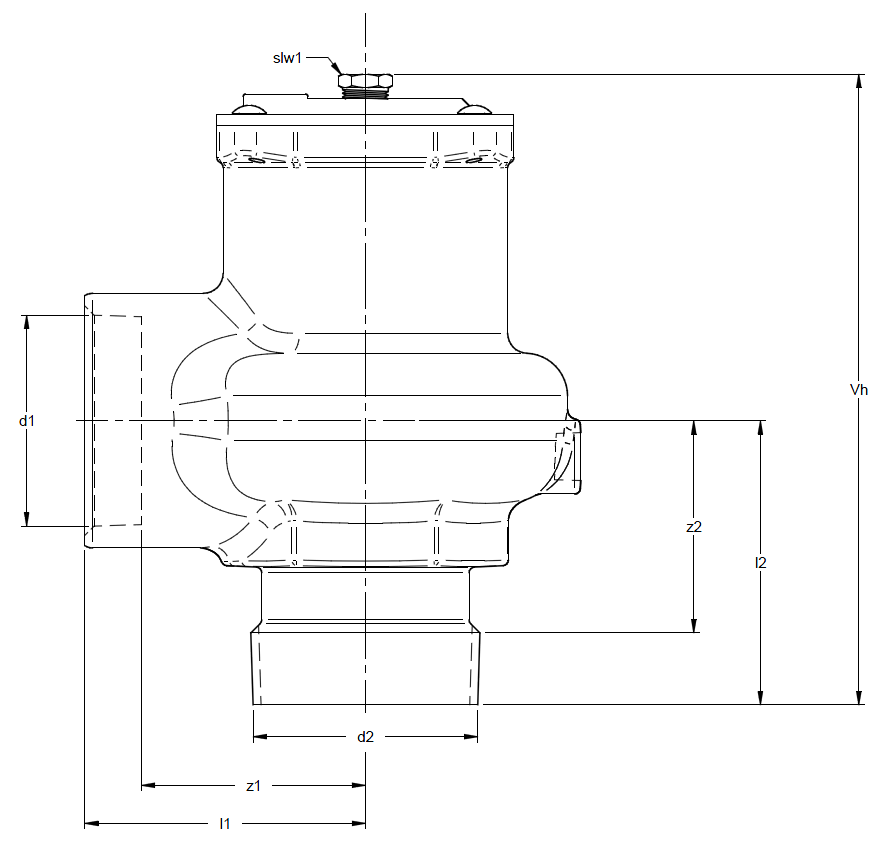

d1	2.38
DN1	-
l1	2.88
d2	2.38
DN2	-
l2	3.13
z2	2.66
h1	0.62
V	3.00

14606V08

size	2-1/2"
dimensions	-
weight	13 lb
packaging	Carton (1 pce)
d1	2.88
DN1	-
l1	3.56
d2	2.88
DN2	-
l2	3.52
z2	2.77
h1	0.60
V	3.69

14607V08

size	3"
dimensions	-
weight	17 lb
packaging	Carton (1 pce)
d1	3.50
DN1	-
l1	4.09
d2	3.50
DN2	-
l2	3.88
z2	3.02
h1	0.86
V	4.25

14605V09

size	2"
dimensions	-
weight	8.4 lb
packaging	Carton (1 pce)
d1	2.38
DN1	-
l1	2.88
d2	2.38
DN2	-
l2	3.13
z2	2.66
h1	0.62
V	3.00

14606V09

size	2-1/2"
dimensions	-
weight	13 lb
packaging	Carton (1 pce)
d1	2.88
DN1	-
l1	3.56
d2	2.88
DN2	-
l2	3.52
z2	2.77
h1	0.60
V	3.69

14607V09

size	3"
dimensions	-
weight	17 lb
packaging	Carton (1 pce)
d1	3.50
DN1	-
l1	4.09
d2	3.50
DN2	-
l2	3.88
z2	3.02
h1	0.86
V	4.25

14605V10

size	2"
dimensions	-
weight	8.4 lb
packaging	Carton (1 pce)
d1	2.38
DN1	-
l1	2.88
d2	2.38
DN2	-
l2	3.13
z2	2.66
h1	0.62
V	3.00

14607V10

size	3"
dimensions	-
weight	17 lb
packaging	Carton (1 pce)
d1	3.50
DN1	-
l1	4.09
d2	3.50
DN2	-
l2	3.88
z2	3.02
h1	0.86
V	4.25

14605V11

size	2"
dimensions	-
weight	8.4 lb
packaging	Carton (1 pce)
d1	2.38
DN1	-
l1	2.88
d2	2.38
DN2	-
l2	3.13
z2	2.66
h1	0.62
V	3.00

14606V11

size	2-1/2"
dimensions	-
weight	13 lb
packaging	Carton (1 pce)
d1	2.88
DN1	-
l1	3.56
d2	2.88
DN2	-
l2	3.52
z2	2.77
h1	0.60
V	3.69

14607V11

size	3"
dimensions	-
weight	17 lb
packaging	Carton (1 pce)
d1	3.50
DN1	-
l1	4.09
d2	3.50
DN2	-
l2	3.88
z2	3.02
h1	0.86
V	4.25

14605V12

size	2"
dimensions	-
weight	8.4 lb
packaging	Carton (1 pce)
d1	2.38
DN1	-
l1	2.88
d2	2.38
DN2	-
l2	3.13
z2	2.66
h1	0.62
V	3.00

14605V12Q

size	2"
dimensions	-
weight	8.4 lb
packaging	Carton (1 pce)
d1	2.38
DN1	-
l1	2.88
d2	2.38
DN2	-
l2	3.13
z2	2.66
h1	0.62
V	3.00

14606V12

size	2-1/2"
dimensions	-
weight	13 lb
packaging	Carton (1 pce)
d1	2.88
DN1	-
l1	3.56
d2	2.88
DN2	-
l2	3.52
z2	2.77
h1	0.60
V	3.69

14606V12Q

size	2-1/2"
dimensions	-
weight	13 lb
packaging	Carton (1 pce)
d1	2.88
DN1	-
l1	3.56
d2	2.88
DN2	-
l2	3.52
z2	2.77
h1	0.60
V	3.69

14607V12

size	3"
dimensions	-
weight	17 lb
packaging	Carton (1 pce)
d1	3.50
DN1	-
l1	4.09
d2	3.50
DN2	-
l2	3.88
z2	3.02
h1	0.86
V	4.25

14605V13

size	2"
dimensions	-
weight	8.4 lb
packaging	Carton (1 pce)
d1	2.38
DN1	-
l1	2.88
d2	2.38
DN2	-
l2	3.13
z2	2.66
h1	0.62
V	3.00

14606V13

size	2-1/2"
dimensions	-
weight	13 lb
packaging	Carton (1 pce)
d1	2.88
DN1	-
l1	3.56
d2	2.88
DN2	-
l2	3.52
z2	2.77
h1	0.60
V	3.69

14607V13

size	3"
dimensions	-
weight	17 lb
packaging	Carton (1 pce)
d1	3.50
DN1	-
l1	4.09
d2	3.50
DN2	-
l2	3.88
z2	3.02
h1	0.86
V	4.25

14605V14

size	2"
dimensions	-
weight	8.4 lb
packaging	Carton (1 pce)
d1	2.38
DN1	-
l1	2.88
d2	2.38
DN2	-
l2	3.13
z2	2.66
h1	0.62
V	3.00

14605V14Q

size	2"
dimensions	-
weight	8.4 lb
packaging	Carton (1 pce)
d1	2.38
DN1	-
l1	2.88
d2	2.38
DN2	-
l2	3.13
z2	2.66
h1	0.62
V	3.00

14606V14

size	2-1/2"
dimensions	-
weight	13 lb
packaging	Carton (1 pce)
d1	2.88
DN1	-
l1	3.56
d2	2.88
DN2	-
l2	3.52
z2	2.77
h1	0.60
V	3.69

14606V14Q

size	2-1/2"
dimensions	-
weight	13 lb
packaging	Carton (1 pce)
d1	2.88
DN1	-
l1	3.56
d2	2.88
DN2	-
l2	3.52
z2	2.77
h1	0.60
V	3.69

14607V14

size	3"
dimensions	-
weight	17 lb
packaging	Carton (1 pce)
d1	3.50
DN1	-
l1	4.09
d2	3.50
DN2	-
l2	3.88
z2	3.02
h1	0.86
V	4.25

14605V15

size	2"
dimensions	-
weight	8.4 lb
packaging	Carton (1 pce)
d1	2.38
DN1	-
l1	2.88
d2	2.38
DN2	-
l2	3.13
z2	2.66
h1	0.62
V	3.00

14605V15Q

size	2"
dimensions	-
weight	8.4 lb
packaging	Carton (1 pce)
d1	2.38
DN1	-
l1	2.88
d2	2.38
DN2	-
l2	3.13
z2	2.66
h1	0.62
V	3.00

14606V15

size	2-1/2"
dimensions	-
weight	13 lb
packaging	Carton (1 pce)
d1	2.88
DN1	-
l1	3.56
d2	2.88
DN2	-
l2	3.52
z2	2.77
h1	0.60
V	3.69

14607V15

size	3"
dimensions	-
weight	17 lb
packaging	Carton (1 pce)
d1	3.50
DN1	-
l1	4.09
d2	3.50
DN2	-
l2	3.88
z2	3.02
h1	0.86
V	4.25

14606V16

size	2-1/2"
dimensions	-
weight	13 lb
packaging	Carton (1 pce)
d1	2.88
DN1	-
l1	3.56
d2	2.88
DN2	-
l2	3.52
z2	2.77
h1	0.60
V	3.69

14606V16Q

size	2-1/2"
dimensions	-
weight	13 lb
packaging	-
d1	2.88
DN1	-
l1	3.56
d2	2.88
DN2	-
l2	3.52
z2	2.77
h1	0.60
V	3.69

14607V16

size	3"
dimensions	-
weight	17 lb
packaging	Carton (1 pce)
d1	3.50
DN1	-
l1	4.09
d2	3.50
DN2	-
l2	3.88
z2	3.02
h1	0.86
V	4.25

14605V17

size	2"
dimensions	-
weight	8.4 lb
packaging	Carton (1 pce)
d1	2.38
DN1	-
l1	2.88
d2	2.38
DN2	-
l2	3.13
z2	2.66
h1	0.62
V	3.00

14606V17

size	2-1/2"
dimensions	-
weight	13 lb
packaging	Carton (1 pce)
d1	2.88
DN1	-
l1	3.56
d2	2.88
DN2	-
l2	3.52
z2	2.77
h1	0.60
V	3.69

14607V17

size	3"
dimensions	-
weight	17 lb
packaging	Carton (1 pce)
d1	3.50
DN1	-
l1	4.09
d2	3.50
DN2	-
l2	3.88
z2	3.02
h1	0.86
V	4.25

14605V18

size	2"
dimensions	-
weight	8.4 lb
packaging	Carton (1 pce)
d1	2.38
DN1	-
l1	2.88
d2	2.38
DN2	-
l2	3.13
z2	2.66
h1	0.62
V	3.00

14606V18

size	2-1/2"
dimensions	-
weight	13 lb
packaging	Carton (1 pce)
d1	2.88
DN1	-
l1	3.56
d2	2.88
DN2	-
l2	3.52
z2	2.77
h1	0.60
V	3.69

14607V18

size	3"
dimensions	-
weight	17 lb
packaging	Carton (1 pce)
d1	3.50
DN1	-
l1	4.09
d2	3.50
DN2	-
l2	3.88
z2	3.02
h1	0.86
V	4.25

14605V20

size	2"
dimensions	-
weight	8.4 lb
packaging	Carton (1 pce)
d1	2.38
DN1	-
l1	2.88
d2	2.38
DN2	-
l2	3.13
z2	2.66
h1	0.62
V	3.00

14606V20

size	2-1/2"
dimensions	-
weight	13 lb
packaging	Carton (1 pce)
d1	2.88
DN1	-
l1	3.56
d2	2.88
DN2	-
l2	3.52
z2	2.77
h1	0.60
V	3.69

14607V20

size	3"
dimensions	-
weight	17 lb
packaging	Carton (1 pce)
d1	3.50
DN1	-
l1	4.09
d2	3.50
DN2	-
l2	3.88
z2	3.02
h1	0.86
V	4.25

14605V21

size	2"
dimensions	-
weight	8.4 lb
packaging	Carton (1 pce)
d1	2.38
DN1	-
l1	2.88
d2	2.38
DN2	-
l2	3.13
z2	2.66
h1	0.62
V	3.00

14605V22

size	2"
dimensions	-
weight	8.4 lb
packaging	Carton (1 pce)
d1	2.38
DN1	-
l1	2.88
d2	2.38
DN2	-
l2	3.13
z2	2.66
h1	0.62
V	3.00

14605V23

size	2"
dimensions	-
weight	8.4 lb
packaging	Carton (1 pce)
d1	2.38
DN1	-
l1	2.88
d2	2.38
DN2	-
l2	3.13
z2	2.66
h1	0.62
V	3.00

14605V24

size	2"
dimensions	-
weight	8.4 lb
packaging	Carton (1 pce)
d1	2.38
DN1	-
l1	2.88
d2	2.38
DN2	-
l2	3.13
z2	2.66
h1	0.62
V	3.00

14607V24

size	3"
dimensions	-
weight	17 lb
packaging	Carton (1 pce)
d1	3.50
DN1	-
l1	4.09
d2	3.50
DN2	-
l2	3.88
z2	3.02
h1	0.86
V	4.25

14605V25

size	2"
dimensions	-
weight	8.4 lb
packaging	Carton (1 pce)
d1	2.38
DN1	-
l1	2.88
d2	2.38
DN2	-
l2	3.13
z2	2.66
h1	0.62
V	3.00

14605V25Q

size	2"
dimensions	-
weight	8.4 lb
packaging	-
d1	2.38
DN1	-
l1	2.88
d2	2.38
DN2	-
l2	3.13
z2	2.66
h1	0.62
V	3.00

14606V25

size	2-1/2"
dimensions	-
weight	13 lb
packaging	Carton (1 pce)
d1	2.88
DN1	-
l1	3.56
d2	2.88
DN2	-
l2	3.52
z2	2.77
h1	0.60
V	3.69

14607V25

size	3"
dimensions	-
weight	17 lb
packaging	Carton (1 pce)
d1	3.50
DN1	-
l1	4.09
d2	3.50
DN2	-
l2	3.88
z2	3.02
h1	0.86
V	4.25

14605V26

size	2"
dimensions	-
weight	8.4 lb
packaging	Carton (1 pce)
d1	2.38
DN1	-
l1	2.88
d2	2.38
DN2	-
l2	3.13
z2	2.66
h1	0.62
V	3.00

14606V26

size	2-1/2"
dimensions	-
weight	13 lb
packaging	Carton (1 pce)
d1	2.88
DN1	-
l1	3.56
d2	2.88
DN2	-
l2	3.52
z2	2.77
h1	0.60
V	3.69

14607V27

size	3"
dimensions	-
weight	17 lb
packaging	Carton (1 pce)
d1	3.50
DN1	-
l1	4.09
d2	3.50
DN2	-
l2	3.88
z2	3.02
h1	0.86
V	4.25

14605V28

size	2"
dimensions	-
weight	8.4 lb
packaging	Carton (1 pce)
d1	2.38
DN1	-
l1	2.88
d2	2.38
DN2	-
l2	3.13
z2	2.66
h1	0.62
V	3.00

14605V29

size	2"
dimensions	-
weight	8.4 lb
packaging	Carton (1 pce)
d1	2.38
DN1	-
l1	2.88
d2	2.38
DN2	-
l2	3.13
z2	2.66
h1	0.62
V	3.00

14605V30

size	2"
dimensions	-
weight	8.4 lb
packaging	Carton (1 pce)
d1	2.38
DN1	-
l1	2.88
d2	2.38
DN2	-
l2	3.13
z2	2.66
h1	0.62
V	3.00

14606V30

size	2-1/2"
dimensions	-
weight	13 lb
packaging	Carton (1 pce)
d1	2.88
DN1	-
l1	3.56
d2	2.88
DN2	-
l2	3.52
z2	2.77
h1	0.60
V	3.69

14607V30

size	3"
dimensions	-
weight	17 lb
packaging	Carton (1 pce)
d1	3.50
DN1	-
l1	4.09
d2	3.50
DN2	-
l2	3.88
z2	3.02
h1	0.86
V	4.25

Specifications

article	Apollo Bronze Vacuum Safety Relief Valve (MNPT x FNPT)
article number with gtin	1460X
manufacturer	Aalberts integrated piping systems Americas, Inc. (Apollo)
weight	17 lb
color	bronze
materials	bronze (ASTM B584-C84400)
finishing	none
shape	straight
connection type	MPT - male thread conical (NPT), FPT - female thread conical (NPT)
sealing	Silicone
product group	valves (safety relief valves)
ETIM class	EC011311 Safety valve
brand	Apollo
series	14 Series Safety Relief Valves
product type	1460X
ETIM	{"etim-class":"EC011311 Safety valve","Housing material":"Bronze","Connection 1":"External thread conical (NPT)","Connection 2":"Internal thread conical (NPT)","Surface protection":"Untreated","Height":"","Height (imperial)":"","Suitable for heating":"No","Suitable for cooling":"No","Suitable for solar heating":"No","Suitable for hot tap water":"No"}

PDF Documents

[Datasheet] 14-600 Submittal Sheet Open PDF

Links

Source product page API JSON for this product

Images

Raw

ID	9062
Code	1460X
Categories	Apollo 14 Series Safety Relief Valves
