Attributes
| Group Code | 13214X |
|---|---|
| Product Type | safety-relief-valve |
| Brand Series | apollo-13-series-safety-valves |
| Approvals | Build America Buy America (BABA) Act, Buy American Act (BAA), Made in USA |
Variations (1)
132140
| size | 1-1/2" x 2" |
|---|---|
| dimensions | - |
| weight | - |
| packaging | - |

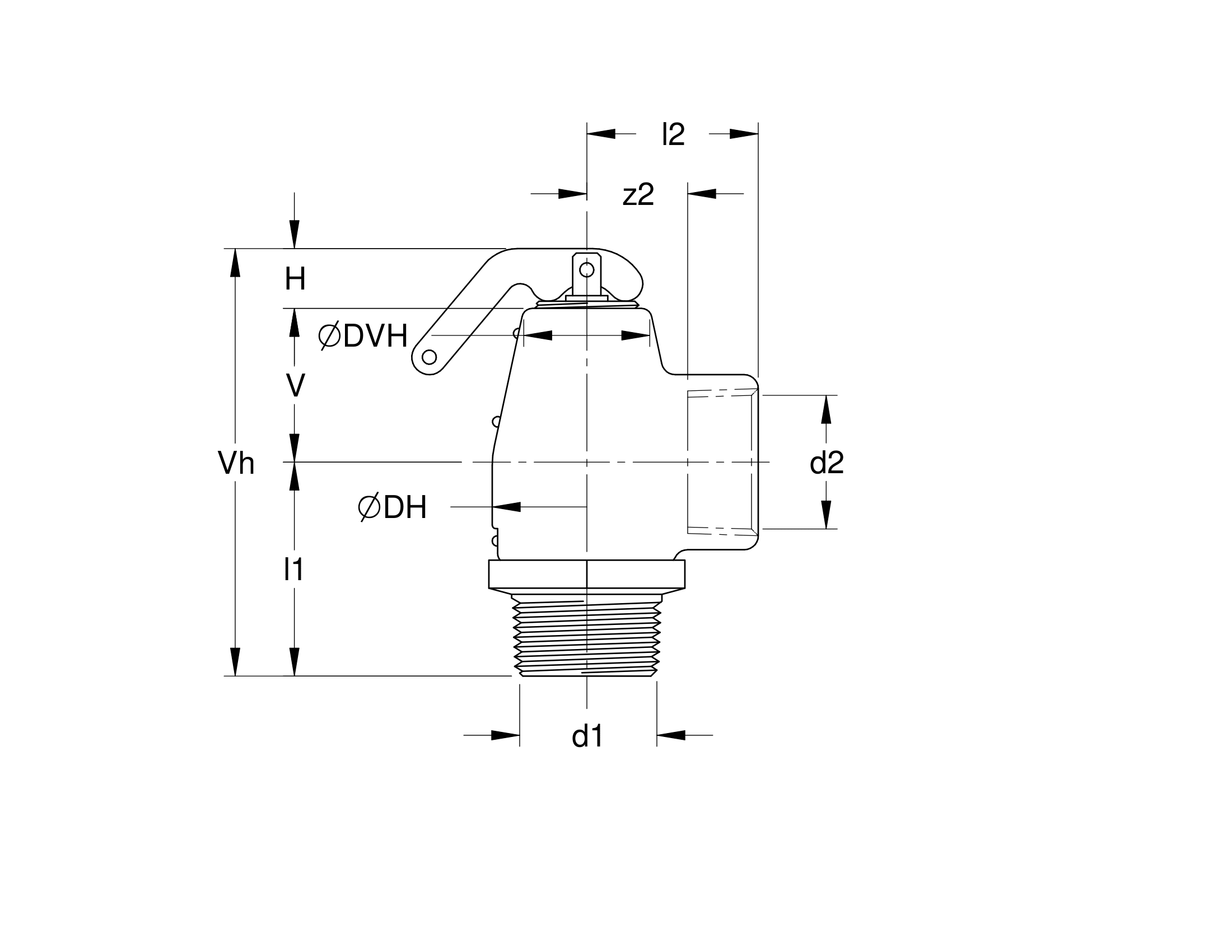

| d1 | 1.90 |
| l1 | 2.91 |
| d2 | 2.38 |
| l2 | 2.19 |
| z2 | 1.49 |
| h1 | 0.62 |
| V | 1.75 |
Specifications
| article | Apollo Bronze Safety Relief Valve 1-1/2" x 2" (MNPT x FNPT) |
|---|---|
| article number with gtin | 13214X (00670750497841) |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| size | 1-1/2" x 2" |
| materials | bronze (ASTM B584) |
| finishing | none |
| shape | straight |
| connection type | MPT - male thread conical (NPT), FPT - female thread conical (NPT) |
| sealing | Silicone |
| product group | valves (safety relief valves) |
| ETIM class | EC011311 Safety valve |
| brand | Apollo |
| series | 13 Series Safety Valves |
| product type | 13214X |
| ETIM | {"etim-class":"EC011311 Safety valve","Housing material":"Bronze","Connection 1":"External thread conical (NPT)","Outer pipe diameter connection 1":"48.26mm","Outer pipe diameter connection 1 (imperial)":"1.9\"","Connection 2":"Internal thread conical (NPT)","Outer pipe diameter connection 2":"60.45mm","Outer pipe diameter connection 2 (imperial)":"2.38\"","Surface protection":"Untreated","Length of connection 1":"73.91mm","Length of connection 1 (imperial)":"2.91\"","Length of connection 2":"55.63mm","Length of connection 2 (imperial)":"2.19\"","Working length connection 2":"37.85mm","Working length connection 2 (imperial)":"1.49\"","Height":"","Height (imperial)":"","Suitable for heating":"No","Suitable for cooling":"No","Suitable for solar heating":"No","Suitable for hot tap water":"No"} |
PDF Documents
[Datasheet] 13-200 Submittal Sheet
Open PDF
