Attributes
| Group Code | 17400 |
|---|---|
| Product Type | safety-relief-valve |
| Brand Series | apollo-17-series-safety-relief-valves |
| Approvals | Build America Buy America (BABA) Act, Buy American Act (BAA), Made in USA |
Description
17-400 series pressure only relief valves are engineered to protect against excessive pressure buildup due to thermal expansion in hot water supply systems. Both models are CSA certified to ANSI Z21.22 “Relief Valves for Hot Water Supply Systems”. In addition the 17-402 is design certified to ASME Section IV for hot water relief.
- Pressure Settings 75 thru 150 psi @ 250°F max
- ASME Section IV Hot Water, Model 17-402 only
- Cast Bronze Body, Stainless Steel Springs
- Soft Seat for Durability, Extended Service Life
- Conforms to HUD / FHA Requirements
- Proudly Made in the USA
Variations (1)

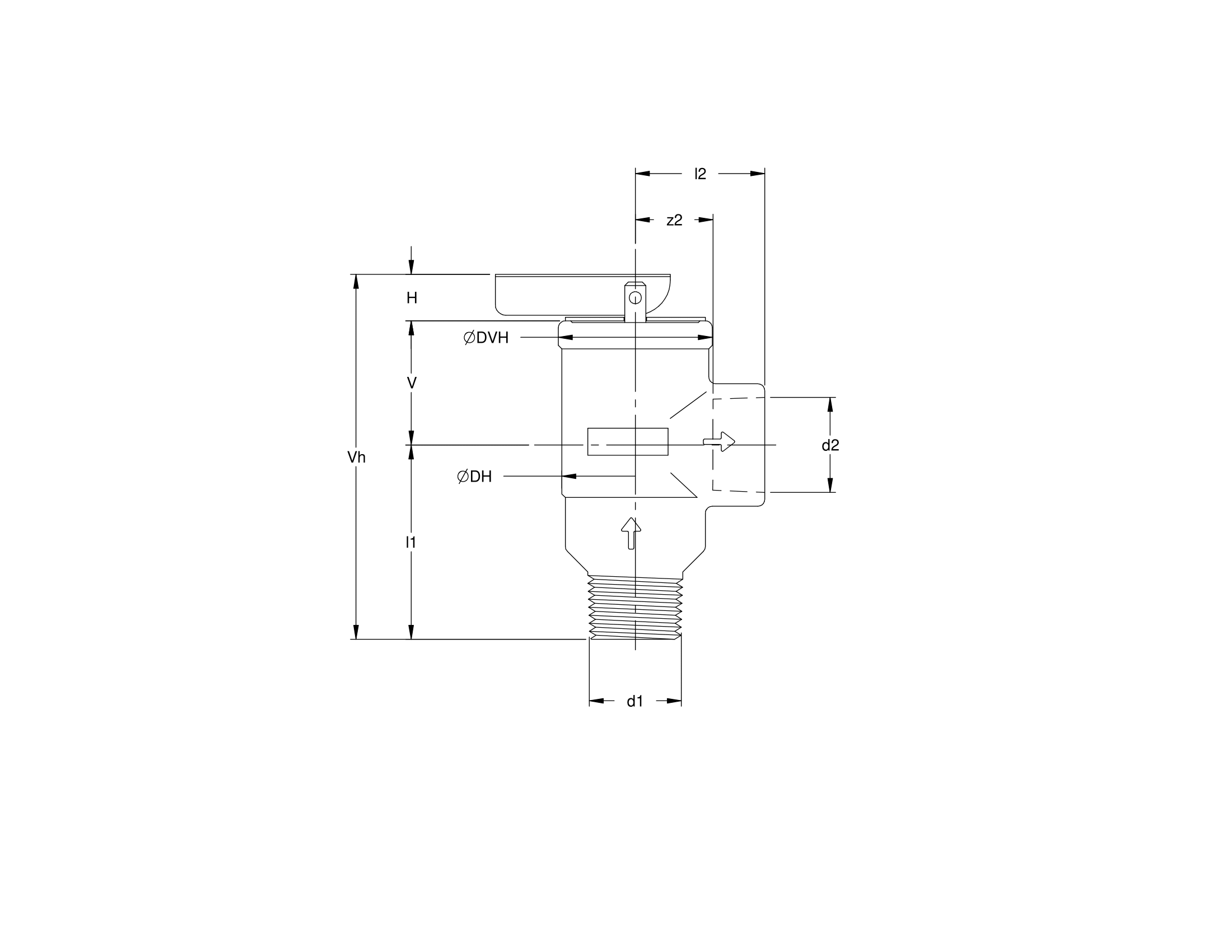

1740204Q
| size | 3/4" |
|---|---|
| dimensions | - |
| weight | 0.53 lb |
| packaging | - |
| d1 | 1.05 |
| DN1 | - |
| l1 | 1.62 |
| d2 | 1.05 |
| DN2 | - |
| l2 | 1.13 |
| z2 | 0.73 |
| h1 | 0.41 |
| V | 1.13 |
Specifications
| article | 17400 |
|---|---|
| article number with gtin | 17400 (00191988119966) |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| size | 3/4" |
| weight | 0.53 lb |
| materials | bronze |
| finishing | none |
| shape | Perpendicular |
| connection type | MPT - male thread conical (NPT), FPT - female thread conical (NPT) |
| product group | valves (safety relief valves) |
| ETIM class | EC011311 Safety valve |
| brand | Apollo |
| series | 17 Series Safety Relief Valves |
| product type | 17402XXQ |
| ETIM | {"etim-class":"EC011311 Safety valve","Housing material":"Bronze","Connection 1":"External thread conical (NPT)","Nominal diameter connection 1":"3/4 inch (20)","Outer pipe diameter connection 1":"26.67mm","Outer pipe diameter connection 1 (imperial)":"1.05\"","Connection 2":"Internal thread conical (NPT)","Nominal diameter connection 2":"3/4 inch (20)","Outer pipe diameter connection 2":"26.67mm","Outer pipe diameter connection 2 (imperial)":"1.05\"","Surface protection":"Untreated","Length of connection 1":"41.15mm","Length of connection 1 (imperial)":"1.62\"","Length of connection 2":"28.8mm","Length of connection 2 (imperial)":"1.13\"","Working length connection 2":"18.44mm","Working length connection 2 (imperial)":"0.73\"","Height":"","Height (imperial)":"","Suitable for heating":"No","Suitable for cooling":"No","Suitable for solar heating":"No","Suitable for hot tap water":"No"} |
