Attributes
| Group Code | 3810X01 |
|---|---|
| Product Type | backflow-preventer |
| Brand Series | apollo-38-series-vacuum-relief-valves |
| Applications | heating, cooling |
| Approvals | Build America Buy America (BABA) Act, Buy American Act (BAA), Made in USA |
| Solutions | utility |
Description
The Apollo Series Atmospheric Type Vacuum Breakers are designed to prevent back-siphonage of polluted water into a potable water system. They should only be installed in areas where spillage of water could not cause damage and where it can be accessible for periodic maintenance. These devices are not designed for continuous pressure application (maximum 12 hours in any 24 hour period). Should be installed a minimum of 6” above all downstream piping with no downstream shutoffs.
- Corrosion Resistant
- Bronze Body
- Heat Resistant Silicone Seat Disc
- Easy to Maintain
- Compact and Lightweight
- Durable
Variations (8)
3810101
| size | 1/4" |
|---|---|
| dimensions | 2.00x1.25x2.50 " |
| weight | 0.51 lb |
| packaging | Carton (1 pce) |
3810201
| size | 3/8" |
|---|---|
| dimensions | - |
| weight | 0.47 lb |
| packaging | Carton (1 pce) |
3810301
| size | 1/2" |
|---|---|
| dimensions | 2.00x1.50x2.50 " |
| weight | 0.55 lb |
| packaging | Carton (1 pce) |
3810401
| size | 3/4" |
|---|---|
| dimensions | 2.50x2.00x3.00 " |
| weight | 0.8 lb |
| packaging | Carton (1 pce) |
3810501
| size | 1" |
|---|---|
| dimensions | 3.25x2.50x4.00 " |
| weight | 1.74 lb |
| packaging | Carton (1 pce) |
3810601
| size | 1-1/4" |
|---|---|
| dimensions | - |
| weight | 3.16 lb |
| packaging | Carton (1 pce) |
3810701
| size | 1-1/2" |
|---|---|
| dimensions | 4.00x3.00x4.50 " |
| weight | 2.89 lb |
| packaging | Carton (1 pce) |
3810801
| size | 2" |
|---|---|
| dimensions | 4.25x3.00x4.50 " |
| weight | 3.69 lb |
| packaging | Carton (1 pce) |
Specifications
| article | Apollo Bronze Atmospheric Vacuum Breaker with Rough Brass Finish (2 x FNPT) |
|---|---|
| article number with gtin | 3810X01 |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| weight | 3.69 lb |
| dimensions | 4.25x3.00x4.50 " |
| color | bronze, yellow |
| materials | bronze (ASTM B584-C84400) |
| finishing | none |
| connection type | FPT - female thread conical (NPT) |
| max operating pressure liquid | 125 psi |
| product group | valves (backflow preventers) |
| ETIM class | EC011469 Check valve |
| country of origin | United States |
| brand | Apollo |
| series | 38 Series Vacuum Relief Valves |
| product type | 3810X01 |
| unsps | 40141749 |
| ETIM | {"etim-class":"EC011469 Check valve","Housing material":"Bronze","Surface protection":"Untreated","Connections":"Internal thread conical (NPT)","Max. operating pressure at 20 °C":"8.62bar","Max. operating pressure at 20 °C (imperial)":"125psi","FM quality mark":"No","UL quality mark":"No","ULC quality mark":"No","LPCB quality mark":"No","Suitable for central heating water":"Yes","Certified according to SVGW for water":"No","Certified according to SVGW for gas":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","KIWA certified":"No"} |
PDF Documents

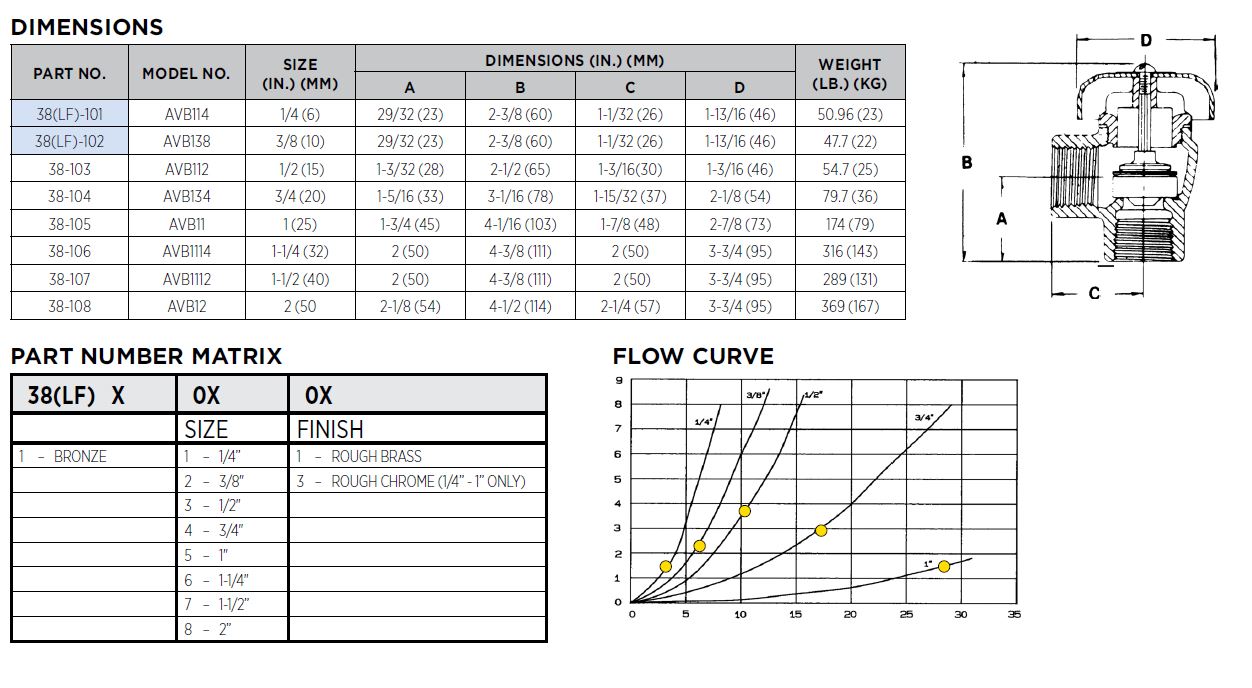

[Datasheet] 38-100 Submittal Sheet
Open PDF
