Apollo 77C Series Ball Valves

Apollo Bronze 2 Piece Full Port Ball Valve with Tee Handle (2 x FNPT)

Scraped SKU: 77CLF10X07A 2026-06-05 04:21:43

Attributes

Group Code77CLF10X07A
Product Typekogelafsluiters
Brand Seriesapollo-77c-series-ball-valves
Applicationspotable water
ApprovalsCRN, NSF
Solutionsutility, industry

Description

The Apollo 77CLF-A “Contractor Series” Lead Free Ball Valve features a dezincification resistant bronze body, premium RPTFE seats and stem packing and a “Solid Ball” design that delivers true full-port flow performance. Cast and machined in Apollo’s South Carolina manufacturing plants using proven EZ-Solder™ lead free materials.
  • Easily Identifiable White Handle and Blue “Lead Free” Hang Tag
  • EZ-Solder™ Lead Free Bronze**
  • RPTFE Seats & Seals
  • Lead Free Brass & Bronze Materials
  • Blowout-Proof Stem Design

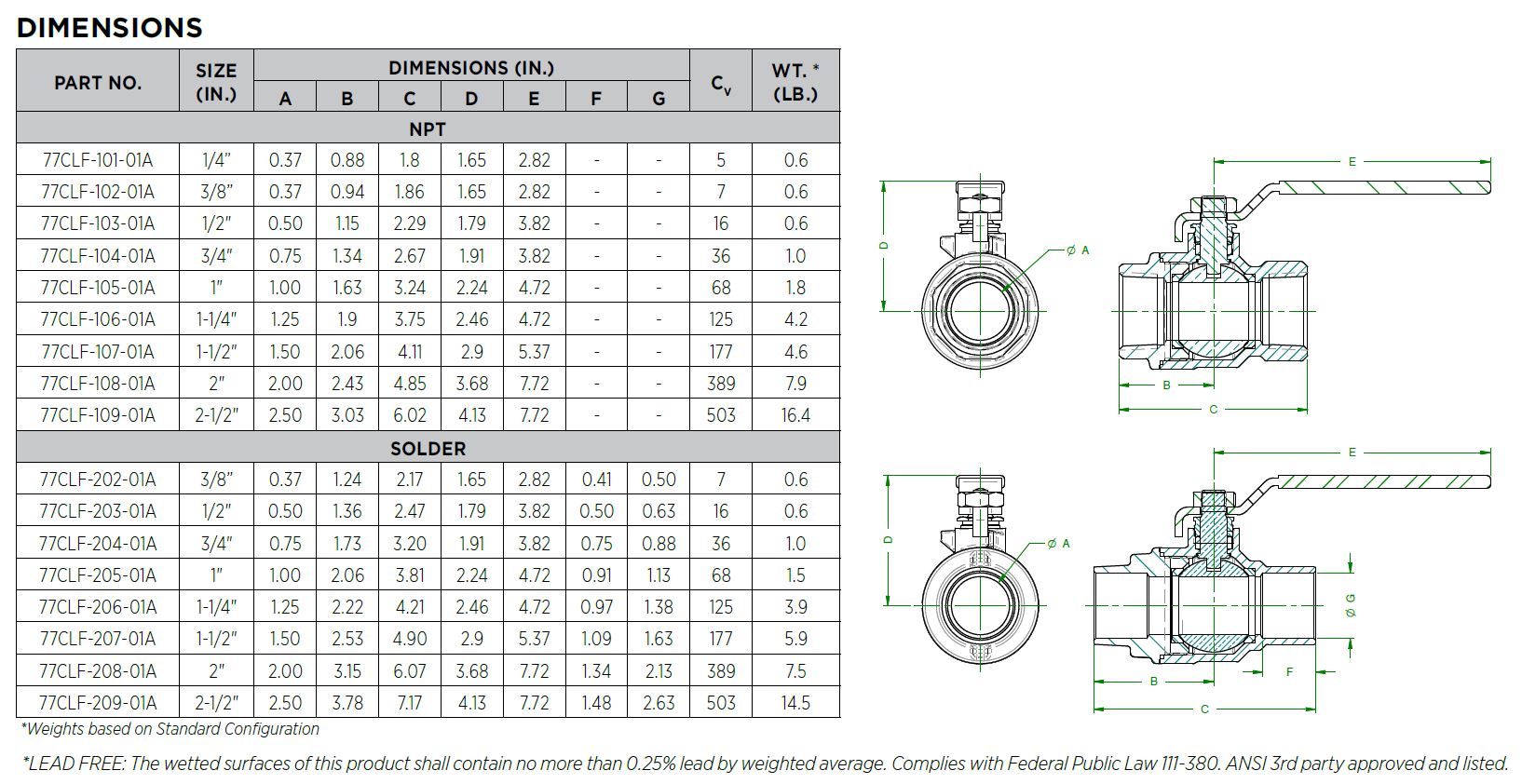

Variations (8)

77CLF10107A

size1/4"
dimensions5.31x1.61x2.72 "
weight0.6 lb
packagingCarton (1 pce)
d10.54
DN1-
l10.88
z10.51
d20.54
DN2-
l20.92
z20.53
M11.28
M21.28
E0.56
Y0.34
V0.99
U0.69
D11.18

77CLF10207A

size3/8"
dimensions5.31x1.61x2.72 "
weight0.55 lb
packagingCarton (1 pce)
d10.68
DN1-
l10.94
z10.53
d20.68
DN2-
l20.92
z20.51
M11.28
M21.28
E0.56
Y0.34
V0.99
U0.69
D11.18

77CLF10307A

size1/2"
dimensions5.31x1.61x2.72 "
weight0.64 lb
packagingCarton (1 pce)
d10.84
DN1-
l11.14
z10.61
d20.84
DN2-
l21.15
z20.62
M11.28
M21.28
E0.56
Y0.34
V1.03
U0.69
D11.19

77CLF10407A

size3/4"
dimensions5.31x1.61x2.72 "
weight0.87 lb
packagingCarton (1 pce)
d11.05
DN1-
l11.34
z10.79
d21.05
DN2-
l21.33
z20.78
M11.28
M21.28
E0.56
Y0.34
V1.25
U0.69
D11.38

77CLF10507A

size1"
dimensions5.31x1.61x2.72 "
weight1.83 lb
packagingCarton (1 pce)
d11.32
DN1-
l11.63
z10.97
d21.32
DN2-
l21.62
z20.96
M11.75
M21.75
E0.68
Y0.37
V1.56
U0.87
D11.72

77CLF10607A

size1-1/4"
dimensions5.31x1.61x2.72 "
weight4.2 lb
packagingCarton (1 pce)
d11.66
DN1-
l11.90
z11.22
d21.66
DN2-
l21.85
z21.16
M11.75
M21.75
E0.68
Y0.37
V1.78
U0.93
D12.06

77CLF10707A

size1-1/2"
dimensions5.31x1.61x2.72 "
weight6.5 lb
packagingCarton (1 pce)
d11.90
DN1-
l12.06
z11.38
d21.90
DN2-
l22.05
z21.37
M12.50
M22.50
E1.00
Y0.49
V2.19
U1.18
D12.47

77CLF10807A

size2"
dimensions5.31x1.61x2.72 "
weight7.9 lb
packagingCarton (1 pce)
d12.38
DN1-
l12.43
z11.74
d22.38
DN2-
l22.42
z21.72
M12.50
M22.50
E1.00
Y0.49
V2.77
U1.31
D13.08

Specifications

articleApollo Bronze 2 Piece Full Port Ball Valve with Tee Handle (2 x FNPT)
article number with gtin77CLF10X07A
manufacturerAalberts integrated piping systems Americas, Inc. (Apollo)
weight7.9 lb
dimensions5.31x1.61x2.72 "
coloryellow, bronze
materialsbronze (C89836 (lead-free))
finishingnone
shapestraight
connection typeFPT - female thread conical (NPT)
sealingPTFE
Bore50.8 mm (Yes)
max operating pressure liquid600 psi
product groupvalves (ball valves)
ETIM classEC011343 Ball valve
country of originUnited States
brandApollo
series77C Series Ball Valves
product type77CLF10X07A
unsps40141607
ETIM
{"etim-class":"EC011343 Ball valve","Housing material":"Bronze","Surface protection housing":"None","Material ball":"Brass","Material spindle":"Brass","Material primary spindle seal":"Polytetrafluoroethylene (PTFE)","Connection 1":"Internal thread conical (NPT)","With coupling connection 1":"No","Connection 2":"Internal thread conical (NPT)","With coupling connection 2":"No","Sealing":"Polytetrafluoroethylene (PTFE)","With filter":"No","With thermometer":"No","FM quality mark":"No","UL quality mark":"No","ULC quality mark":"No","LPCB quality mark":"No","Medically clean":"No","Grease-free":"No","Operation":"Button (expired)","Housing construction":"2-part","Full bore":"Yes","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","KIWA certified":"No"}

PDF Documents

[Certificate] CRN_0C10908_ADD10 Open PDF
[Certificate] NSF_70LF_71LF_77xLF_82LF_Series_Ball_valve Open PDF
[Datasheet] 77CLF-100 Submittal Sheet Open PDF
[Installation- & Maintenance Document] 77C Series IOM Open PDF
