Attributes
| Group Code | 7330X1829 |
|---|---|
| Product Type | kogelafsluiters |
| Brand Series | apollo-73-series-ball-valves |
| Applications | heating, cooling, steam, compressed air, vacuum |
| Approvals | American Iron & Steel (AIS), Build America Buy America (BABA) Act, Buy American Act (BAA), Made in USA |
| Solutions | utility, industry |
Description

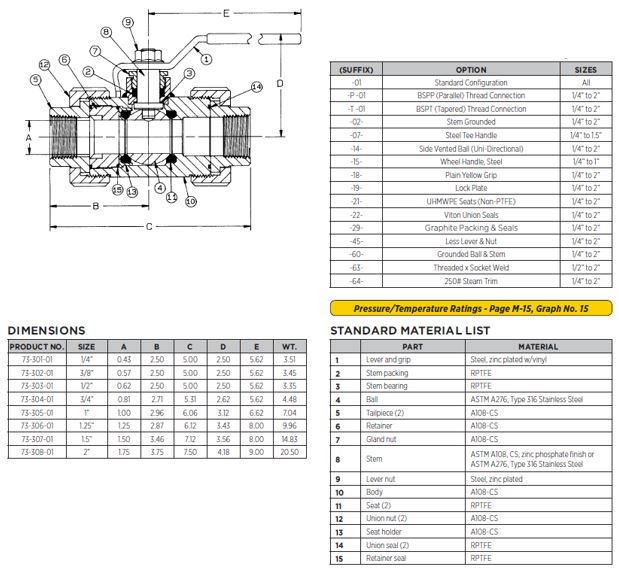

The Apollo 73-300 Series is a standard port, double union end, carbon steel ball valve.
- Heavy duty quarter turn lever
- Reinforced seats and seals
- Steel barstock design
- Easy installation and maintenance
- Blowout-proof stem design
- Adjustable packing gland
- Zinc phosphate corrosion protection
Variations (1)
733051829
| size | 1" |
|---|---|
| dimensions | 8.33x1.59x2.63 " |
| weight | 7.04 lb |
| packaging | Carton (1 pce) |
| d1 | 1.32 |
| DN1 | - |
| d2 | 1.32 |
| DN2 | - |
Specifications
| article | Apollo Carbon Steel Standard Port Ball Valve with Plain Yellow Grip, Graphite Packing & Seals (2 x Union FNPT) |
|---|---|
| article number with gtin | 7330X1829 (00670750714252) |
| manufacturer | Aalberts integrated piping systems Americas, Inc. (Apollo) |
| size | 1" |
| weight | 7.04 lb |
| dimensions | 8.33x1.59x2.63 " |
| color | black |
| materials | steel (ASTM A108-CS) |
| finishing | none |
| shape | straight |
| connection type | FPT - female thread conical (NPT) |
| max operating pressure liquid | 3000 psi |
| product group | valves (ball valves) |
| ETIM class | EC011343 Ball valve |
| country of origin | United States |
| brand | Apollo |
| series | 73 Series Ball Valves |
| product type | 7330X1829 |
| unsps | 40141607 |
| ETIM | {"etim-class":"EC011343 Ball valve","Housing material":"Steel","Surface protection housing":"None","Material ball":"Stainless steel","Material spindle":"Steel","Nominal diameter connection 1":"DN 25","Outer pipe diameter connection 1":"33.4mm","Outer pipe diameter connection 1 (imperial)":"1.31\"","Connection 1":"Internal thread conical (NPT)","With coupling connection 1":"No","Nominal diameter connection 2":"DN 25","Outer pipe diameter connection 2":"33.4mm","Outer pipe diameter connection 2 (imperial)":"1.31\"","Connection 2":"Internal thread conical (NPT)","With coupling connection 2":"No","With filter":"No","With thermometer":"No","FM quality mark":"No","UL quality mark":"No","ULC quality mark":"No","LPCB quality mark":"No","Medically clean":"No","Grease-free":"No","Housing construction":"2-part","Full bore":"No","VdS quality mark":"No","DVGW quality mark for gas":"No","DVGW quality mark for water":"No","KIWA certified":"No"} |
